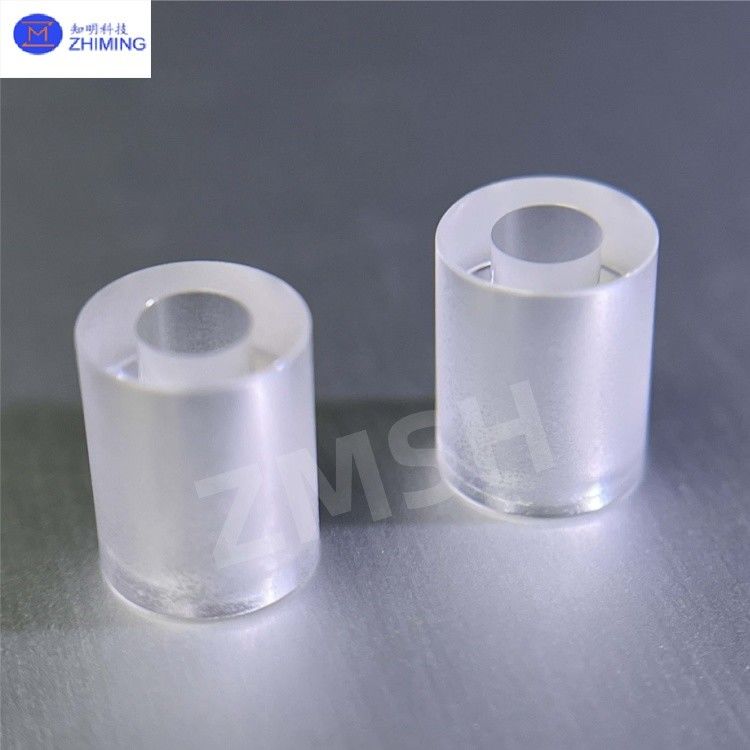

High-Precision Customized Sapphire Bearings Low Friction Industrial Applications

Produkt-Details

Place of Origin: CHINA

Markenname: ZMSH

Zertifizierung: rohs

Model Number: Sapphire Bearings

Zahlungs-u. Verschiffen-Ausdrücke

Minimum Order Quantity: 25

Preis: by case

Delivery Time: 2-4weeks

Payment Terms: T/T

Erhalten Sie besten Preis
Hervorheben:
Material:
Single crystal Al2O3
Size:
Customized
Surface Roughness:
Ra ≤ 0.01 μm
Mos Hardness:
9.0
Suraface:
Unpolished
Application:
Medical devices, High-end industrial equipment
Material:
Single crystal Al2O3
Size:
Customized
Surface Roughness:
Ra ≤ 0.01 μm
Mos Hardness:
9.0
Suraface:
Unpolished
Application:
Medical devices, High-end industrial equipment
High-Precision Customized Sapphire Bearings Low Friction Industrial Applications



Abstract of Sapphire Bearings







High-Precision Customized Sapphire Bearings Low Friction Industrial Applications



Sapphire bearing components are manufactured from high-purity single-crystal α-alumina (Al₂O₃), serving as critical elements in high-precision mechanical systems due to their exceptional physical properties. With a Mohs hardness of 9 (second only to diamond), these components significantly reduce friction and wear while extending equipment service life. Their chemical inertness resists most acid/base corrosion (except HF) without releasing contaminants in vacuum or high-purity environments, meeting stringent cleanliness requirements for semiconductor and medical applications. The thermal expansion coefficient (5.3×10⁻⁶/°C) closely matches steel, preventing thermal stress-induced failure. Additionally, their insulating properties (volume resistivity >10¹⁴Ω·cm) eliminate electrostatic interference, making them ideal for precision electronics. Advanced laser processing and ion beam polishing enable sub-micron dimensional accuracy (±0.5μm) and ultra-smooth surfaces (Ra≤0.01μm), delivering reliable performance for high-precision motion systems.

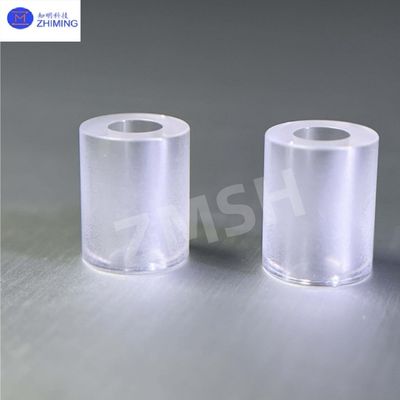

High-Precision Customized Sapphire Bearings Low Friction Industrial Applications 0



Key Features of Sapphire Bearings





· Exceptional Hardness & Wear Resistance: Mohs 9 hardness with wear rates 1/10 of metal bearings



· Chemical Inertness: Resists strong acids (except HF), alkalis, and organic solvents with <0.001mm/year corrosion rate



· Thermal Stability: CTE of 5.3×10⁻⁶/°C (steel-compatible) prevents thermal stress failure



· Precision Machining Capability: Achieves surface roughness Ra≤0.01μm and flatness ±0.05mm/100mm



· Electrical Insulation: Volume resistivity >10¹⁴Ω·cm for anti-interference applications










Primary applications of Sapphire Bearings

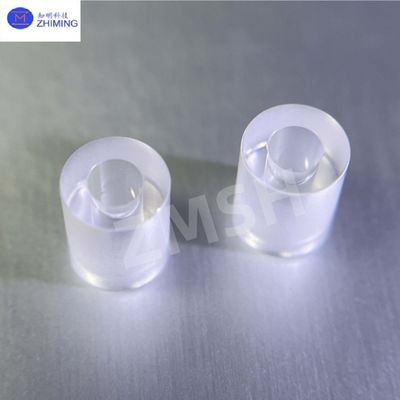

High-Precision Customized Sapphire Bearings Low Friction Industrial Applications 1



1. Semiconductor Manufacturing Equipment


Critical for lithography wafer stages and vacuum robotic arms, their particle-free properties maintain chip yield with ≤0.1μm radial runout. In EUV lithography systems, sapphire bearings withstand intense UV radiation without degradation.





2. Medical Devices


Core components for dental handpieces (≥300,000 RPM turbines), offering ISO 13485-compliant biocompatibility and autoclave resistance (135°C cyclic sterilization). Miniature bearings (<1mm diameter) enable precise force feedback in surgical robots without MRI artifacts.





3. Precision Instruments


Used in AFM scanner heads and inertial guidance gyros, reducing motion noise to <0.1dB. Telescope equatorial mounts achieve 0.01-arcsecond tracking accuracy with sapphire bearings.





4. Industrial High-End Equipment


Fiber drawing capstans demonstrate <1μm wear after 1,000 operational hours, outperforming conventional ceramics. 5G antenna phase adjusters endure -40°C to 85°C thermal cycling.








ZMSH's Services





We deliver end-to-end sapphire bearing solutions including:

  • Material selection (doping optimization)

  • Structural design (FEA stress analysis)

  • Precision machining (laser cutting/ion beam polishing)

  • Performance testing (tribology/life validation)

  • Custom coatings (DLC/diamond-like carbon)

Prototypes available in 48 hours, with 2-4 week production cycles for volume orders. Aerospace-grade clean packaging (Class 10) and global logistics support included.







High-Precision Customized Sapphire Bearings Low Friction Industrial Applications 2High-Precision Customized Sapphire Bearings Low Friction Industrial Applications 3








Q&A​





1. Q: What material is jewel bearing?
     A: Jewel bearings are typically made of synthetic sapphire (Al₂O₃) or ruby (Cr:Al₂O₃).


2. Q:What are the components of radial bearing?
     A:The main components of a radial bearing include inner/outer rings, rolling elements (balls/rollers), and a cage (retainer).
